Welded Wire Mesh
Enzar Metal is one of the most specialized manufacturers of welded wire mesh roll in China. We supply various welded wire mesh products, which covers the main assortments on the market. Please link to Quality for knowing more about our process of welded wire mesh. Welded wire mesh is widely used in almost all industrial and domestic sectors, such as agricultural, construction, transportation, engineering, home decoration, gardening and landscaping, etc..
Common Specifications
- Opening: 1/4", 3/8", 1/2", 5/8", 1", 2" and any other multiple sizes or metric sizes.
- Wire: 0.4mm-5mm (or in BWG & AWG wire gauge)
- Roll Width: 500mm to 4000mm
- Roll Length: 1m to 100m
- Packing: moisture resistance paper, stretch plastic film, shrink plastic film, in bulk or on pallets or in wooden box

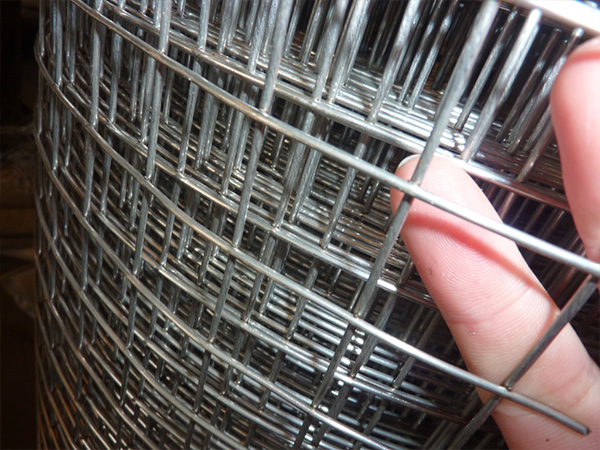

Galvanized Welded Wire Mesh
There are fours types of welded wire mesh according to the galvanizing type and how to galvanize.
Electro-galvanized before welded Electro-galvanized after welded Hot dipped galvanized before welded (GBW) Hot dipped galvanized after welded (GAW)
Electro-galvanized(EG) is a cost saving way in galvanizing comparing to hot dipped galvanized(HDG), but HDG performs much better in rust-resistance. It is decided by the different zinc volume on the wire surface.
Zinc volume is the main factor that decides the performance of corrosion resistance. Enzar Metal is capable of producing the welded wire mesh in both galvanized wire and black wire. Due to the burning of the zinc from the galvanized wire surface while welding, only under galvanized after welding process, the intersection parts will be covered with zinc protection, which is not easily to get rusted.
The chart below shows the character of quality and cost reference for different galvanization.
| Type |
Zinc |
Price |
Performance |
| Electro-galvanized before welded |
10-20g/sqm |
Lowest |
Worst |
| Electro-galvanized after welded |
20-30g/sqm |
Lower |
Middle |
| Hot dipped galvanized before welded |
50-80g/sqm or more |
Middle |
Middle |
| Hot dipped galvanized after welded |
Over 200g/sqm |
Highest |
Best |
General Specification Table for reference
GBW
| Wire diameter |
Mesh (inch) |
| 16 Gauge |
1/2" x 1", 1" x 1", 1" x 2" |
| 14 Gauge |
1" x 1", 1" x 2", 2" x 4" |
| 12-1/2 Gauge |
2" x 2", 4" x 4" |
GAW
| Wire diameter |
Mesh (inch) |
| 23 Gauge |
1/4" x 1/4" |
| 19 Gauge |
1/2" x 1/2" |
| 16 Gauge |
1/2"x1/2", 1/2"x1", 1"x1", 1"x2" |
| 14 Gauge |
1"x1", 1"x2", 2"x2", 2"x4" |
| 12-1/2 Gauge |
1/2"x3", 1"x1", 1"x2" |
| 11 Gauge |
2"x4", 3"x3" |

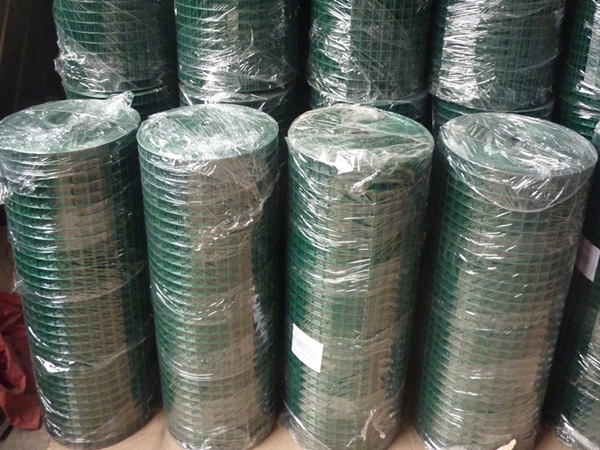

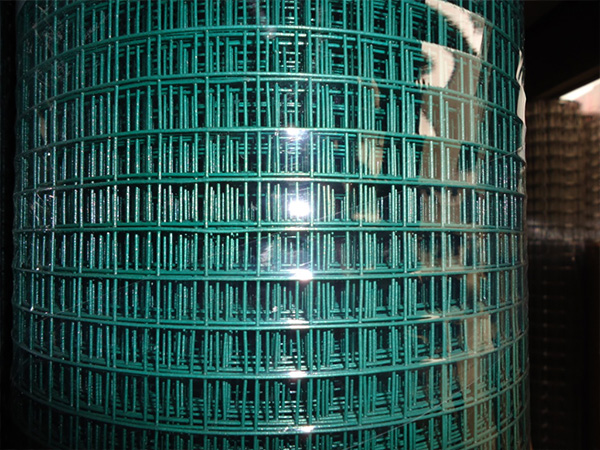

PVC/Vinyl Coated Welded Wire Mesh
This type of welded wire mesh is first welded using black wire or galvanized wire to form the mesh and then processed with thermal dipped PVC/Vinyl coating. Plastic material is a better way to keep moisture and air from steel rusting. By covering every part of the welded wire mesh with PVC layer, there is not any exposure to the environment for welded wire mesh from Enzar Metal, as a result, it will last much longer. The PVC material we use is UV resistance and wide temperature range and has good anti-aging property.
General Specification Table for reference
| Wire diameter |
Mesh ( inch) |
| 23Gauge |
1/4" x 1/4" |
| 19Guage |
1/2" x 1/2" |
| 16Guage |
1/2" x 1/2", 1/2" x 1", 1" x 1", 3" x 2" |
| 14Guage |
3/4" x 3/4", 1" x 1", 1" x 2", 2" x 2", 4" x 4" |
| 12-1/2Guage |
1" x 1", 1" x 2", 2" x 2", 2" x 4" |
| 11Guage |
2" x 4", 3" x 3" |
| 10-1/2Guage |
2" x 2", 4" x 4" |

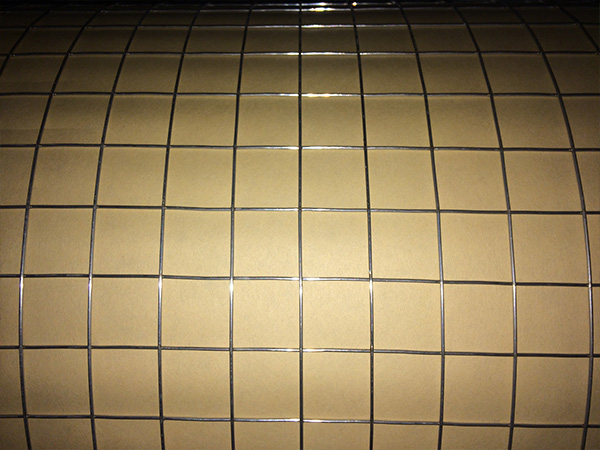

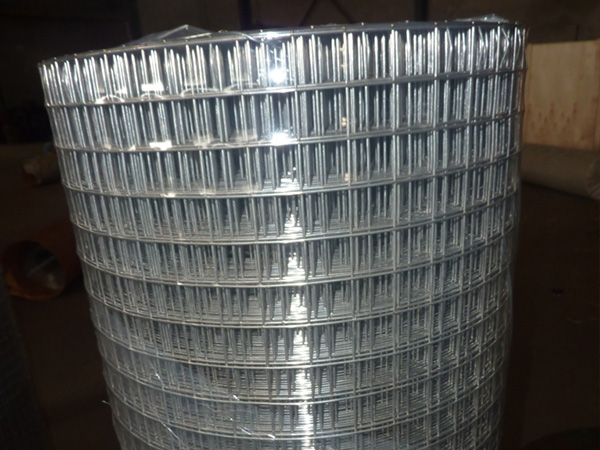

Stainless Steel Welded Wire Mesh
Stainless steel welded wire mesh is the strongest and most lasting type because the nature of stainless steel material. It needs no additional protection finish like PVC coated or galvanized. The wire itself is extremely resistant to rust, corrosion, salt water and other hash chemicals. We have large stock of type 304 or 316 stainless steel wire mesh in our warehouse. Please send inquiry for instantly shipping.
General Specification Table for reference
| Material |
Wire diameter |
Mesh (inch) |
Standard Roll |
| SS 304 OR SS 316 |
23Gauge |
1/4" x 1/4" |
Width:
24", 36", 48"
Length: 100' |

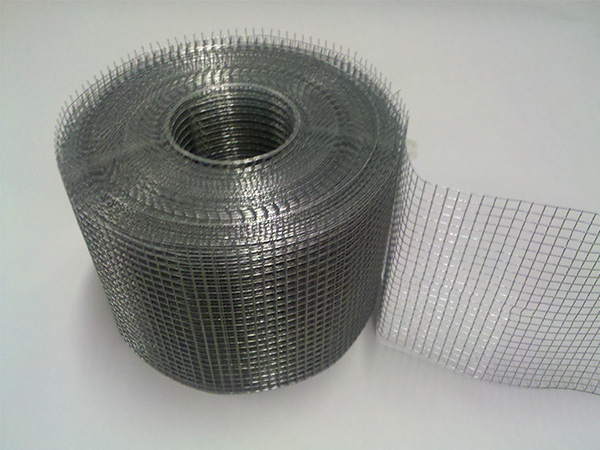

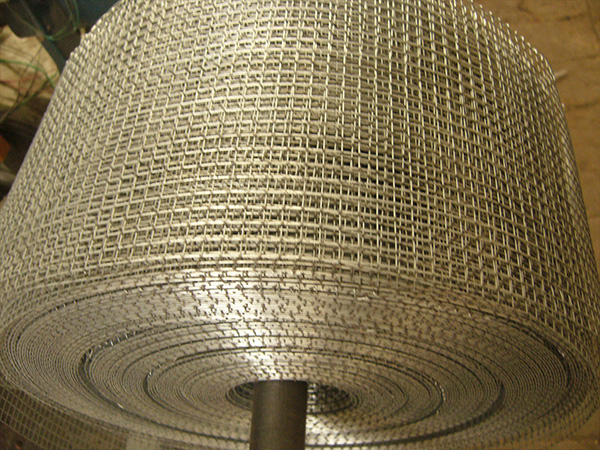

Cut-to-size & Special Design
Enzar Metal offers cut-to-size services. No matter you need a shearing roll in any widths or any size of sheets, please do not hesitate to tell us. All material will be properly processed by our experienced worker and efficient machine. These meshes in special sizes can be widely used as cage wire, masonry mesh, plaster mesh, etc..

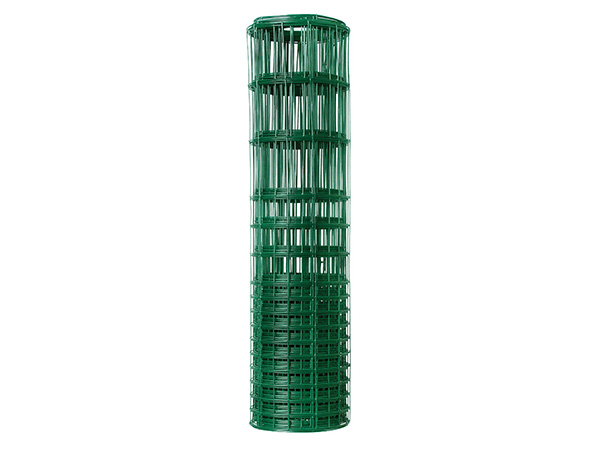

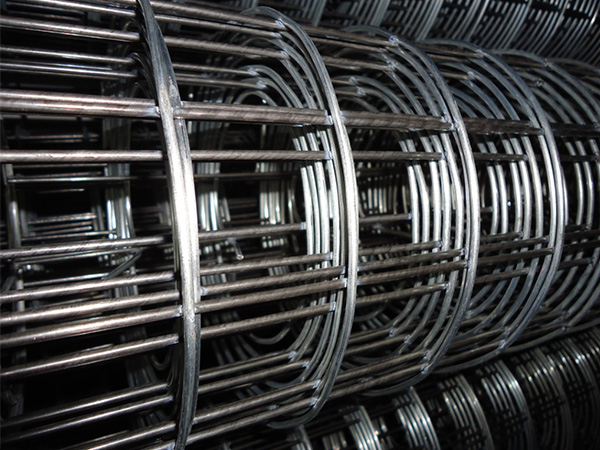

For different industry, we make special design or customer-made products. You can choose any wire, opening and treatment, like ultra-thick wire, irregular opening format, and dual galvanizing. Your need is our mission.
For different industry, we make special design or customer-made products. You can choose any wire, opening and treatment, like ultra-thick wire, irregular opening format, and dual galvanizing. Your need is our mission.

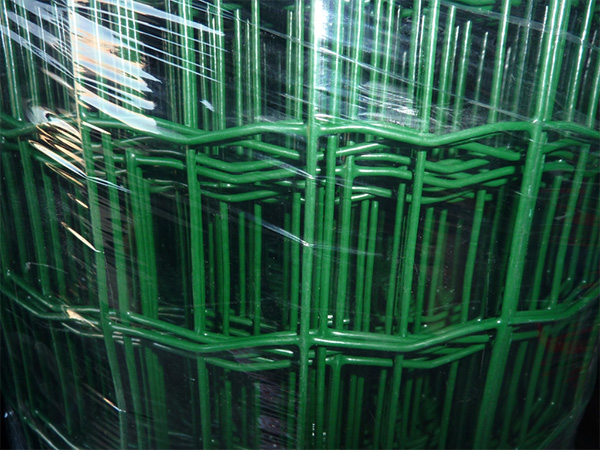

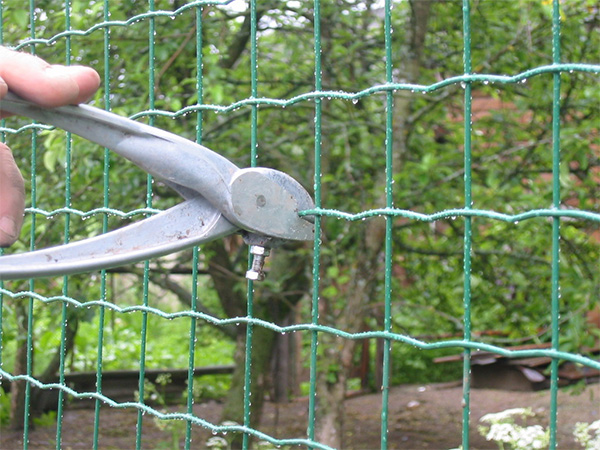

Euro Style Welded Wire Fence Roll
Euro style welded wire fence Roll is a special design for fencing purpose. It is original from Europe and becomes very popular all over the world. It is ideal for private garden, parking lot, landscaping closure and so on. It is the perfect fencing products of easily installation, low cost and good appearance.
This design is featured at the crimped horizontal wire and reinforced selvedge at the top and bottom. It is considerate that our horizontal wire is properly crimped for the rain drop to fall easily. We have PVC coated type and hot dipped type available in our stock. We use galvanized inner wire for the PVC coated type for outdoor application. Dark Green (RAL 6005) is the common color.
For different industry, we make special design or customer-made products. You can choose any wire, opening and treatment, like ultra-thick wire, irregular opening format, and dual galvanizing. Your need is our mission.
General Specification Table for reference
| Wire Diameter |
Mesh(Inch) |
Mesh (mm) |
| 2.0mm-3.5mm |
2" x 2" |
50mm x50mm |
| 2" x 3" |
50mm x 75mm |
| 2" X 4" |
50mm x 100mm |
Special specifications are available
Common Height for fencing: 1.2m, 1.5m, 1.8m, 2.0m |
