Brc Fence

Roll Top fence is a popular welded mesh panel with a rolled top and bottom edge meaning no sharp or raw edges. Roll top fence also called BRC fence. It incorporates user friendly top and bottom "triangle" edges to give enhanced safety and rigidity to the fence. It is ideal for use in schools, parks and playgrounds, sports, stadiums, utilities etc.

BRC fence also called roll top fence in some region. Its main market is in Singapore and other southeast Asia countries. Chinese supplier called the BRC fence to be Korean fence because there also have a big market of BRC fence in South Korea.

Material: Low carbon steel wire, Galvanized wire

Surface treatment:

1. Hot dipped galvanized and powder coated
2. Electro galvanized and powder coated
3. Hot dipped galvanized

Color: Green RAL6005 and Black RAL9005. Other colors are available on request.

Powder coating: min. 100 micron

Ross Top Mesh Fence System

The Roll top mesh fence is completely fence system it is conclusive of fence panel, post, gates and fastener system ,the post is fitted with M8 threaded inserts for securing panels, with a wide range of heights available. posts come inclusive of top caps.

Panels

Wire Diameter: 4mm,5mm,6mm,7mm,8mm
Hole size: 50mm*150mm; 50x200mm; 50x100mm; 75x100mm, 75x200mm; 75x300mm
Panel Size:
- 900mm(H)*2400mm/3000mm
- 1200mm(H)*2400mm/3000mm
- 1500mm(H)*2400mm/3000mm
- 1800mm(H)*2400mm/3000mm
- 2100mm(H)*2400m/3000mm

Post

Round post,
- Size:48mm 60mm
- Thickness:1.5mm 2.0mm 2.5mm 3.0mm
Square Post,
- Size:50x50mm 60x60mm,80x80mm
- Thickness:1.5mm 2.0mm 2.5mm 3.0mm
- Accessories : U-Clip, Bolt & Nuts, Flat Bar etc

Installation

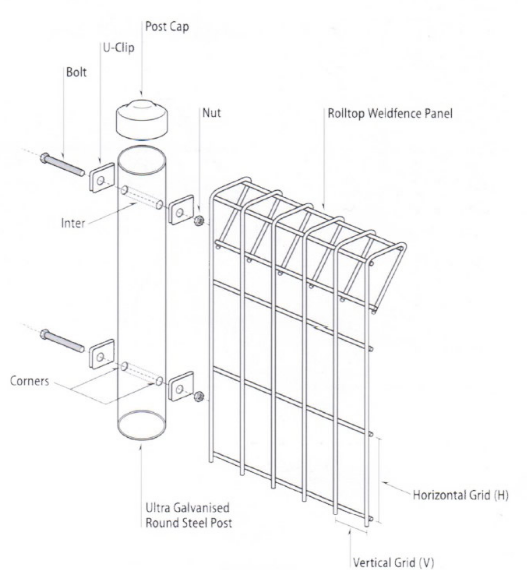

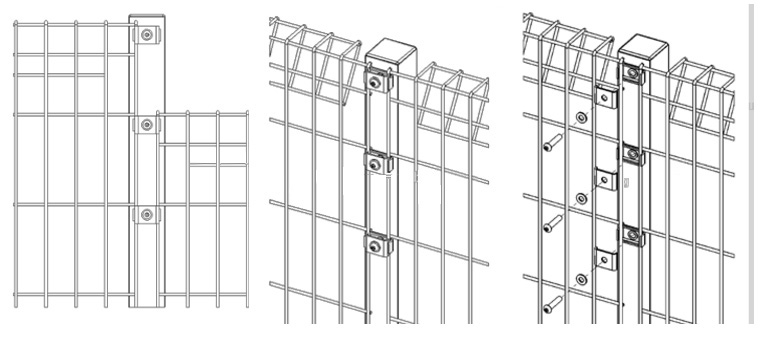

Installation of Brc Fence

Applications

General boundary fencing
Security fencing
Sports fencing
School fencing
Steel cages
Steel grills
Steel gates
Roof netting

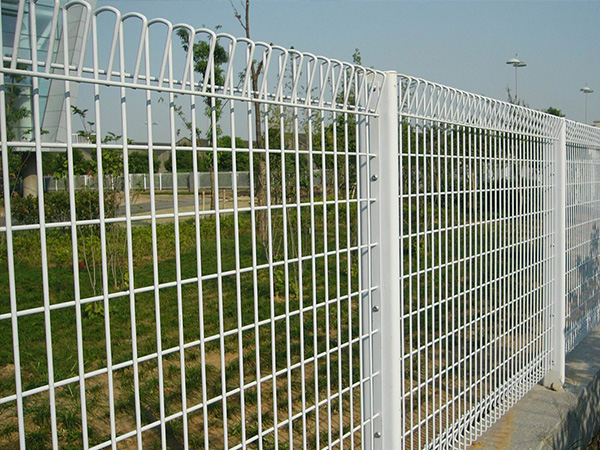

BRC Fence Installed in Park

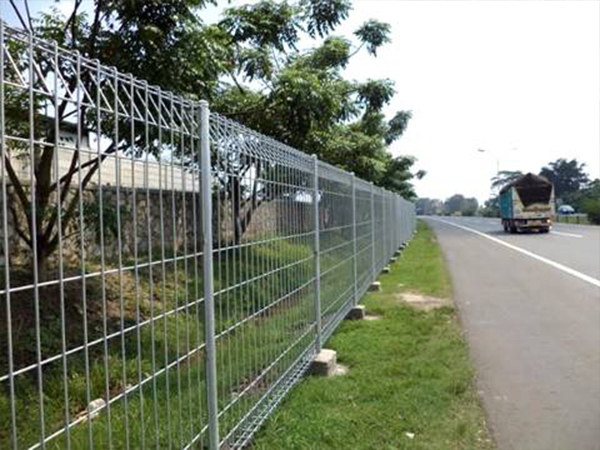

BRC Fence Installed in Road

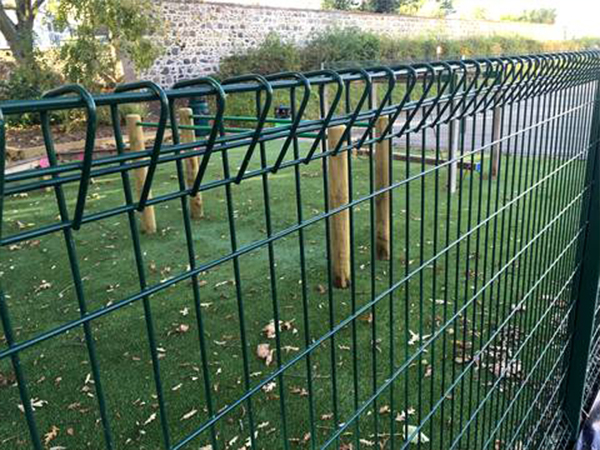

BRC Fence Installed in School

Package

Fence panel: plastic film+wood/metal pallet
Fence post:every post pack with a plastic bag(the cap is cover the post)+metal pallet
Accessory:small plastic bag+carton box

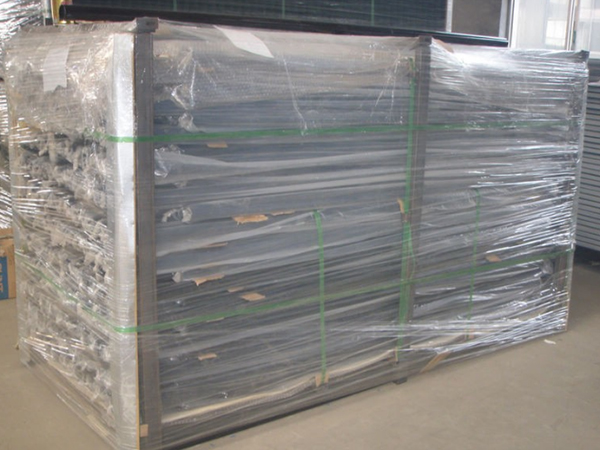

Fence Panels are Packaged in Plastic Film

Fence Posts are Packaged in Plastic Bag+Carton Box
