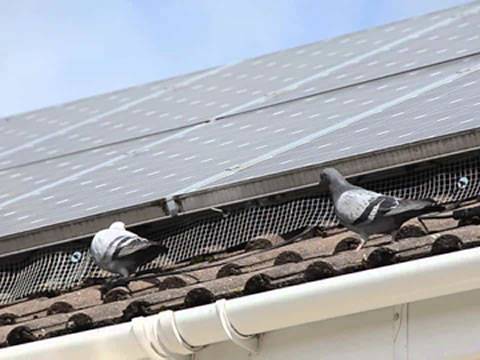

Solar Panel Bird Proofing

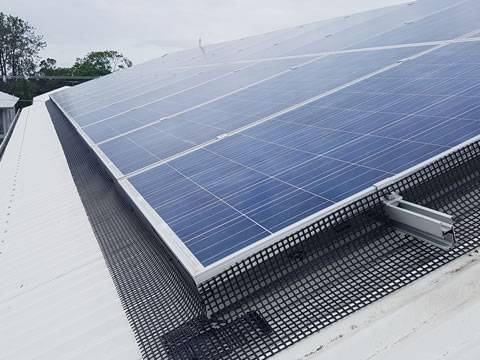

Solar panel mesh is a specially designed critter guard for solar panel. It is used as bird netting for deterrent bird from leaving and nesting around the solar panel. We supply solar panel mesh individually and the solar panel bird exclusion kit.

Galvanized/Stainless Steel/PVC coated mesh
Weather & Rust resistance
Won't damage solar panel
Without drilling or gluing
Physical barrier and won't hurt birds
Almost invisible
Environmentally friendly
Reduce clean and maintenance costs
Kit sale for Your more efficient sale or installation.

Solar Panel Bird Exclusion Kit List

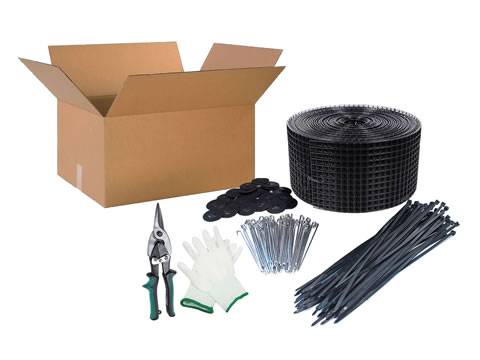

A carton and the solar panel bird mesh kit on the table.
Solar panel mesh

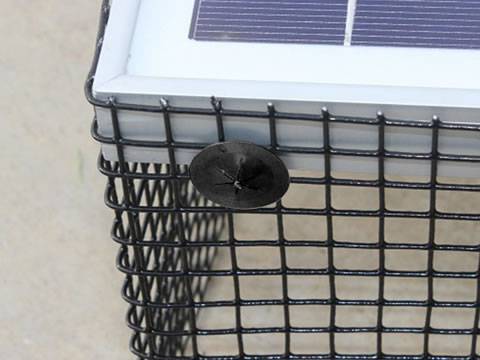

Solar panel mesh clips
Wire Cutter
Corner Zip Ties
Anti static Gloves
Installation instruction

Specifications

Material: PVC coated steel wire, galvanised steel wire, stainless steel 304 and 316L

	In Metric	In Imperial
Wire Diameter	0.7/0.8/0.9/1.0/1.1/1.2 mm	16Ga., 19Ga.
Mesh Opening	12.7 × 12.7 mm, 25.4 × 25.4 mm, 12.7 × 25.4 mm	1/2" × 1/2", 1" × 1", 1/2" × 1"
Width	0.1/0.15/0.2/0.23/0.25/0.3 m	4", 6", 8", 9", 10", 12"
Length	15/20/25/30 m	50', 66', 82', 100'

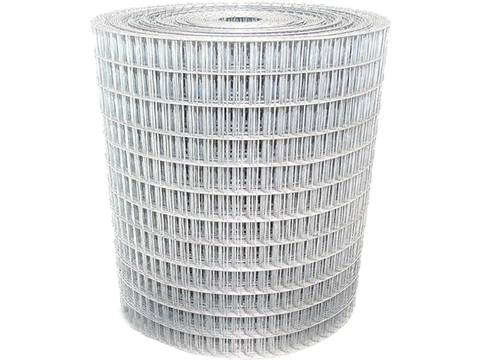

Galvanised Material

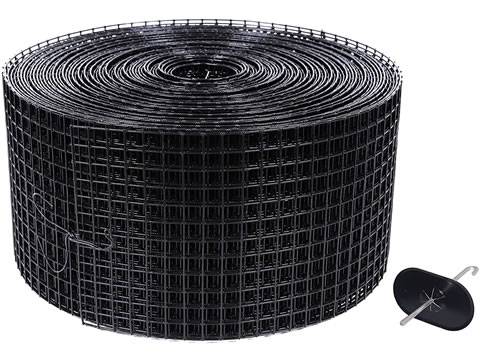

PVC Coated Material

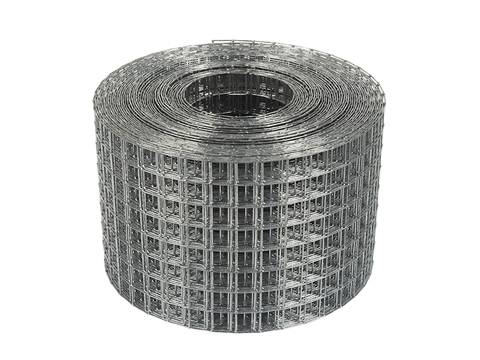

Stainless Steel Material

Advantages

100% effective. Prevent pigeons and bird from roosting and nesting under solar panel.
Safe. Prevent leaves and debris from blowing under the solar panel and cause fire hazard.
Suitable for Almost all solar panel system. Different width and length combination can cover most solar panel system installs and roof tile types.
Easy and efficient installation. No drilling or gluing process can save installation schedule and time to speed up project process without destroy the solar panel system.
Rigid. Proper thickness of wire diameter allows for the mesh to be rigid to block birds and small animals entering.
Malleable & Flexible. It is easily cut and allow flexible and easy installation at the corner or around conduits, electrical boxes, railings and vents.
Perfect opening. Small to 1/2" (12.7 mm) opening can not only keep critters and birds out, but still allow wind and water flow to avoid fire hazard caused by debris.
Weather & rust proof. The PVC coated, galvanized or stainless steel material all have excellent rust and weather resistant performance to guarantee the long service life of solar panel mesh and reduce replacement costs. Besides, the cut points doesn't rust and cause discoloration on roofs and the surround solar system components.
Bird Friendly. Solar panel mesh is a physical barrier, which efficiently blocks birds and will not hurt them.
Cost effective. The solar panel mesh can save cleaning and maintenance cost and can protect the roof, wiring and equipment from damage.
Invisible. Almost invisible at the ground.

Package List

Pallets for only mesh
Carton for Kit
Customized kit package for your directly sale.

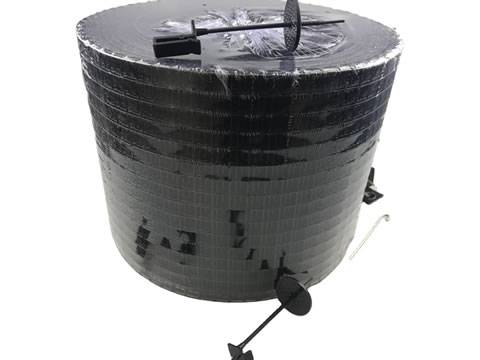

Plastic film for solar panel mesh

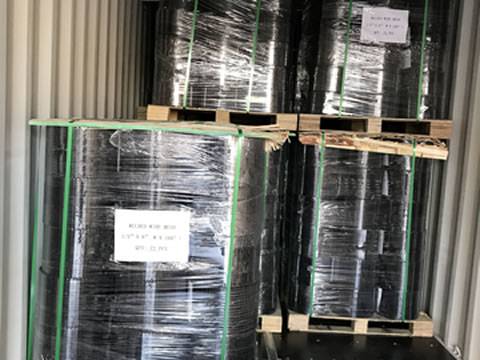

Pallets for solar panel mesh

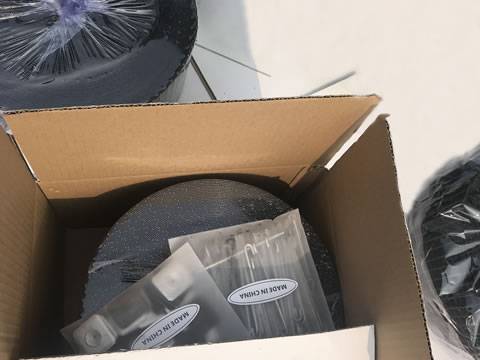

Carton for solar panel bird mesh kit
