Horse Panel

Horse panels, or corral panels are made from heavy duty galvanized steel tubes, which are welded together by vertical posts and horizontal rails to form a sturdy structure. A horse arena or pen can be formed with pieces of panels jointed with accessories. Horse panels are easy to install and dismantle. They are widely used to enclose and protect horses in farmland, paddocks, arenas, rodeo, stables, etc.

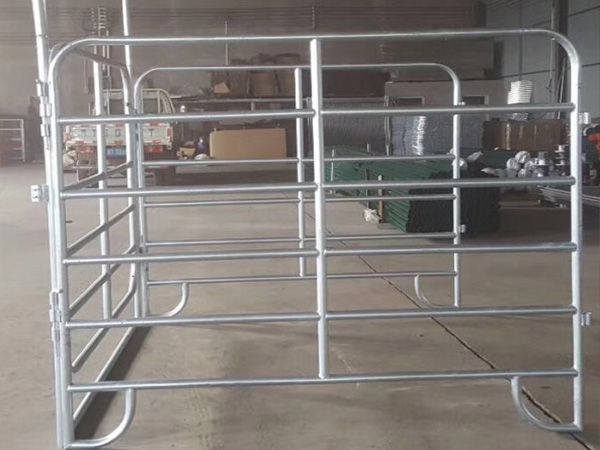

Round Corral Panel

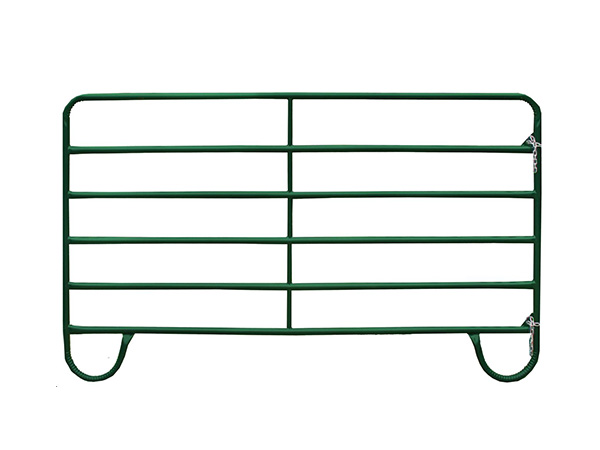

Powder Coated Corral Panel

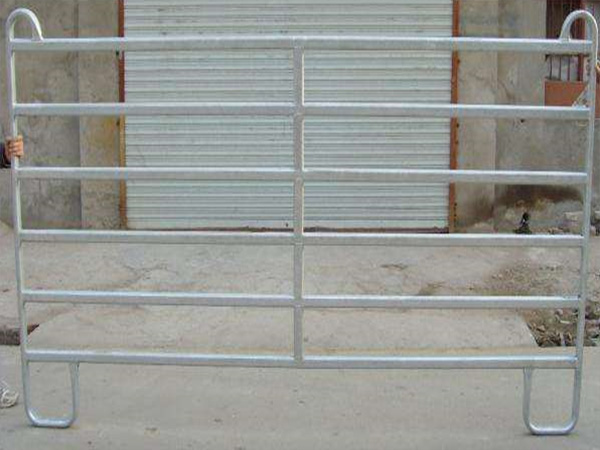

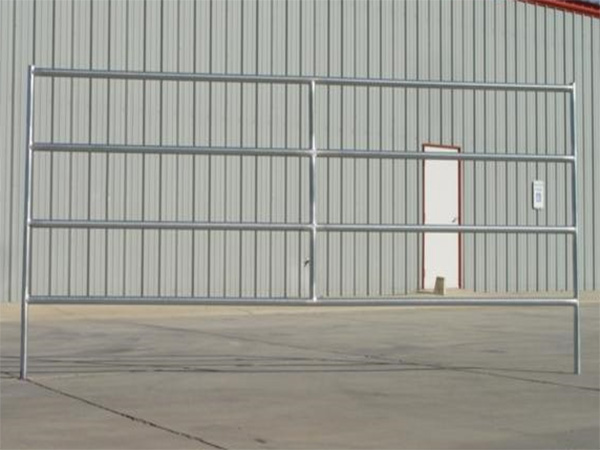

Simple Corral Panel

Oval Pipe Corral Panel

Feature

1. Robust structure. Horse panels are made from heavy duty steel tubes. They are welded by 360 degree. The sturdy structure makes horse panels stable and not easy to break.
2. Corrosion resistant and durable. The galvanized and painted coated surface make the panels anti-corrosion & rust and long service life.
3. Easy assembly and disassembly. Horse panels are jointed with pin latches or chains. The J-legs and metal base enable horse panels to stand freely without the need to dig holes on ground or lay foundations.
4. Safety guarantee. The panels are galvanized and polished without sharp edges. Thereby, the panels will not cause injury to your horses.
5. Various shapes of tubes. Horse panel's tubes are available in round tubes, square tubes and oval tubes with different sizes.
6. Beautiful and attractive. Horse panels are hot-dipped galvanized or painted in gray, white, red, green and other colors, which can attract people's eyes.

Specification

Material	Carbon steel
Pipe thickness	1.6mm – 2.0mm.
Pipe dimension	Three types ( round pipe, square pipe, oval pipe) Round pipe: 32mm; 42mm. Square pipe: 40mm × 40mm; 50mm × 50mm. Oval pipe: 30mm × 60mm; 40mm × 80mm; 50mm × 100mm; 40mm × 120mm.
Panel size (H × L)	1.0m × 3.0m; 1.5 × 2.0m; 1.6m × 2.5m; 1.8m × 2.1m; 1.8m × 2.1m; 1.8m × 2.4m, 1.8m × 3.0m, etc.
Finish	Hot dipped galvanized, power painted, PVC coated.
Painted color	white, gray, orange, green, red, pink, etc.
Bars/Rails	3 rails, 4 rails, 5 rails, 6 rails, 7 rails. 1.8m high with 6 bars/rails or 1.6m high with 5 bars/rails, etc.
Packing	Packed in steel pallet or in bulk.
Main markets	Australia, New Zealand, Canada, US, European countries and Asian countries.

Process

1. Prepare the pipes (round pipe, oval pipe and square pipe).
2. Set the pipes on the welded shaping machine. Then the pipes are galvanized and welded together.
3. Polish the pipes smooth and then paint in colors.

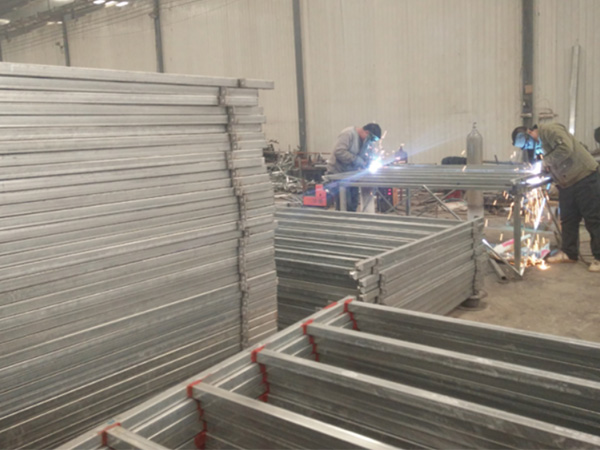

Set the pipes on the welded shaping machine

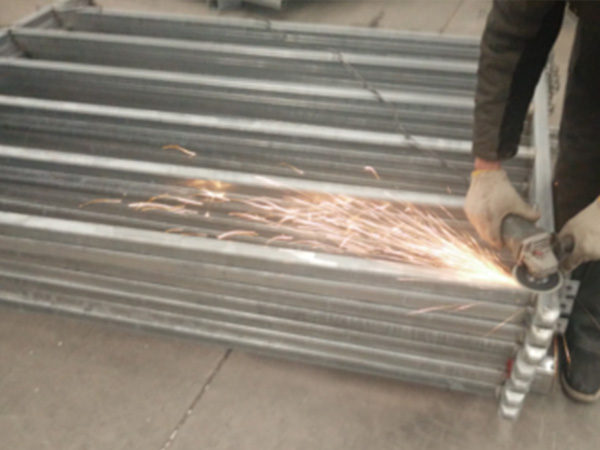

Polish the pipes smooth and then paint in colors

Details

Corners: Horse panels have different types of corners, including square corners, round corners, corners with bolt hooks.
Caps: The vertical square and round pipes are capped with rubber caps to protect horses from injury.
Legs: The vertical posts have straight legs (uprights), J-legs to stand freely without digging holes on ground or laying foundation.
Connecting system: Panels are attached with chain latches, J-shaped latches, pin latches not to allow panels to move or rattle.

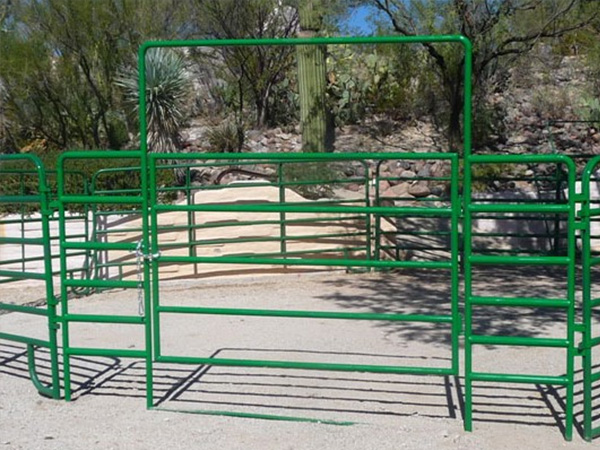

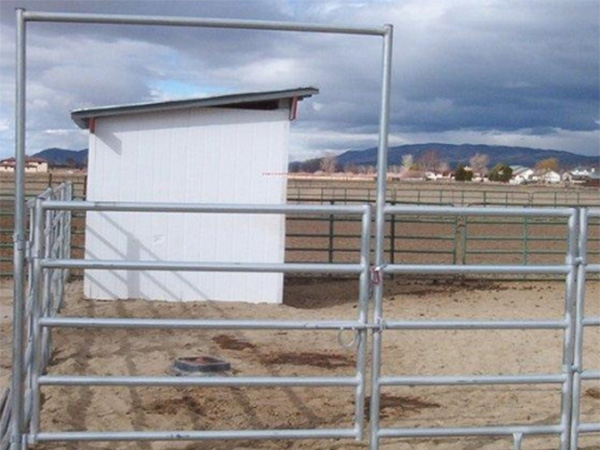

Gates: Horse panel gates provide easy access for horses. They are available in walk-through gates and drive-through gates.

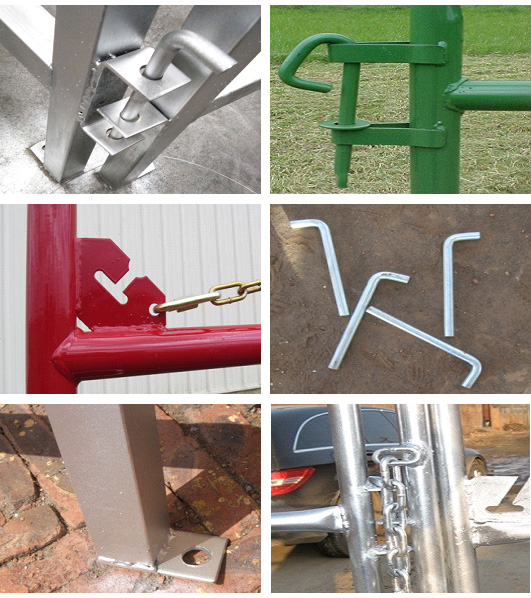

Latches connect each panel together

Application

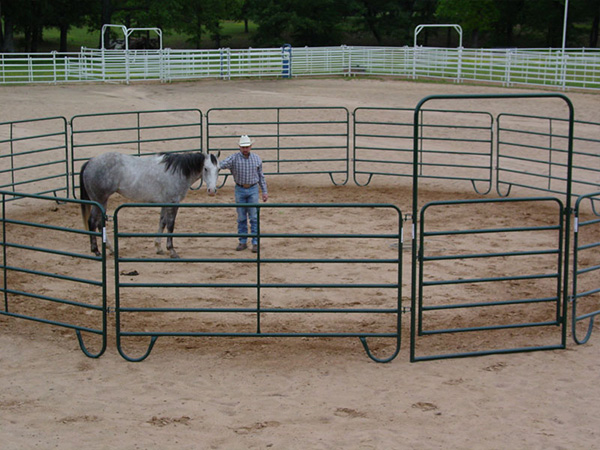

Round or square pens for enclosing horses and keeping predators out.
Temporary horse retreat for horses rest.
Equine arenas.
Horse stables.
Widely applied for protecting farm fields from wild animals or thieves.

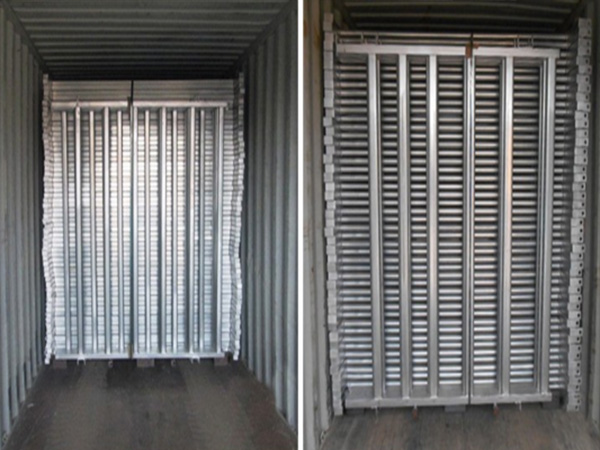

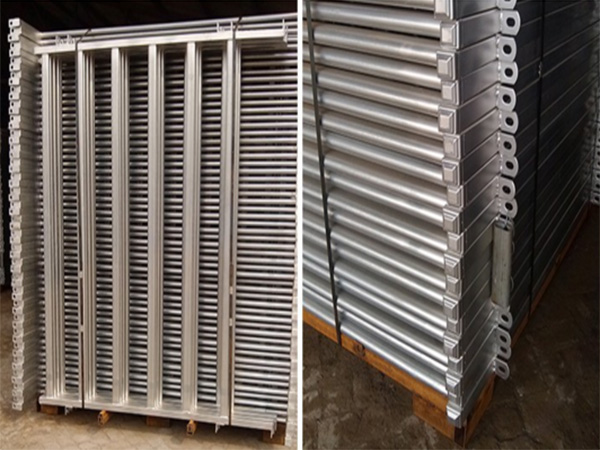

Loading
