Euro Fence

Euro Fence, also called holland fence/dutch mesh/wave welded mesh, garden fence or road fence. It is a kind of most common type of economic fencing.

Material:

black mild steel wire:
galvanized wire

Surface Treatment:PVC, PE or PP powder coated, electro galvanized, hot dipped galvanized.

Weaving and Characteristic

The warp bended beforehand is welded with the weft with the surface treated by galvanizing, hot-galvanizing, PVC coating, PVC plating and they have such characteristics as beautiful appearance, smooth mesh, firm welding, good beforehand bending property, steadiness, good anticorrosion and resistance to aging.

Specification

Fence height: 1200mm / 1400mm / 1600mm / 1800mm / 2000mm / 2200mm
Width: 2500mm / 3000mm(the distance between two posts, center to center)
Fence wire thickness: 2.0mm / 2.5mm / 3.0mm
Mesh size: 50mmx50mm / 100mmx50mm
Roll length: 15m/30m
Accessories: plastic clamp or wire rings(galvanized or stainless steel)
Post size: swallow tail post (38mm/48mm / 60mm) with 300mm buried into ground
Support post: one pair of support post will be put at 25m or 30m intervals. However most of the time it can be erected without additional support.
Rain cap: anti-uv pp rain cap
Surface: electric galvanized + pvc coated (all colors in ral)

Advantage

One of the biggest advantage of the Euro Fence is economical, when you have to buy a big quantity of fence products but with a limited budget, the Euro Fence must be the first choice. The Euro Fence is widely used in the boundary with big quantity.

The Euro Fence is welded with wave horizontal wire. So from its appearance, it is quite good looking and beautiful. To choose the Euro Fence, it can have a little decorative role for your usage. When you surround your farm or boundary with Euro fence, it will be also very beautiful in appearance.

The installation of the Euro fence is very easy. You can install the post first, and then you unfold the Euro fence roll. And using the clips and tools to fix the fence roll with the post. And the Euro fence is done. you needn't worry about the installation of it any more.

Because of the mesh size of the Euro Fence, it may easy to be cut if someone want to break it. But if you want to improve the issue, you can put some electric energizer or make the mesh smaller.

Economic
Nice looking
Easy installation
Easy to cut

Installation

1.Measure the length on the ground, normally is 15m or 30m same length as the euro fence roll. We make 15m length of euro fence as an example. Dig holes every 3 linear meter. Need to make sure the line of these holes are straight, we can not change the direction after setting up the swallow tail post.
2.Setting up the swallow tail post into the holes in every 3 linear meters and fill the earth into the edge of the holes. Need to make sure the swallow post is strong enough and won't move even we try to move it.
3.Open the euro fence roll to a 15 linear meter straight panel and stand it up.
4.After standing the euro fence panel up to the post, set up the U clips with a special tool which we will provide with the fence. Make sure the U clips are locked the vertical wire of the fence panel on to the swallow tail post. The distance of the U clips are 200mm ~ 300mm according to different height.
5.Install the post rain cap on the top of the post in the end. If the height of euro fence is difficult to touch the post top, please install the post cap first before we set up the post.

If calculating the distance of post carefully, it is possible to dig all holes first, then setting up all euro fence panels next. This will increase the installation speed a lot. If the ground is concrete instead of earth, we need to use the swallow tail post with flange plate, installing the post with anchor bolts in to the ground

Installation of the Euro Fence

Packing

(1)In Bulk: all euro fence roll and swallow tail post and fittings loaded in bulk. This will save some cost but will crash the surface (do not suggest)
(2)Plastic Film + Steel Pallet: plastic film wrapped then loaded on steel pallets, accessories loaded in carton box, all stuffs be protected very well. (suggested)

Euro Fences are Packed In Bulk

Euro Fences are Packed in Plastic Film

Application

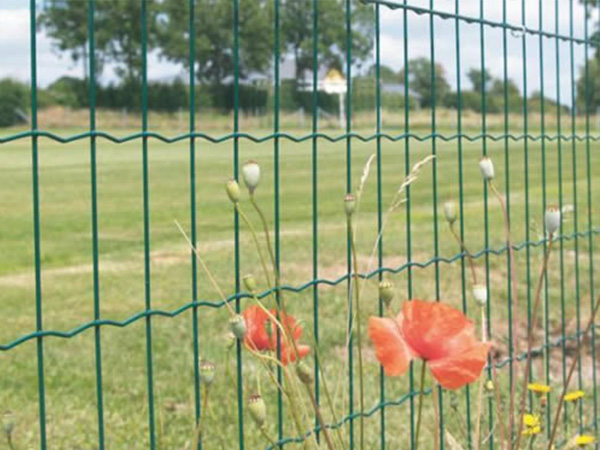

Euro fence widely used for fencing or enclosure in the highway, railway, airport, housing area, garden, park, etc.
