Wire Mesh Tenant Storage Lockers

Wire mesh tenant storage lockers are designed to provide secure, visible, and highly flexible storage solutions for shared environments. Featuring welded wire mesh panels, modular construction, and multiple tier configurations, they efficiently maximize available space while ensuring ventilation, durability, and user-level security across residential, commercial, and industrial applications.

Classifications

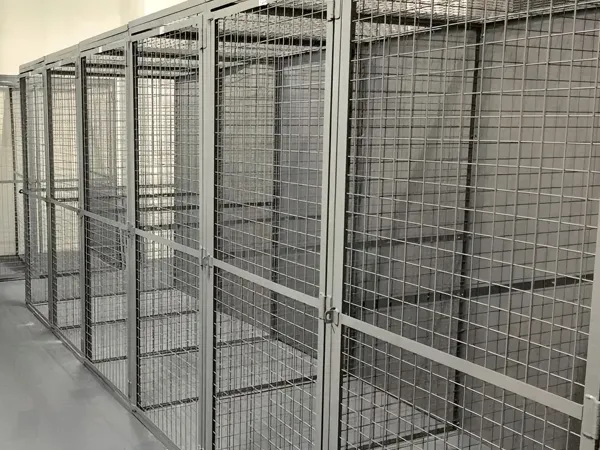

Single-Tier

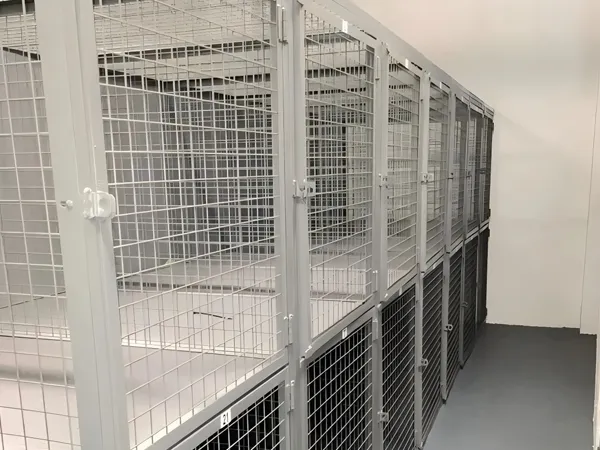

Double-Tier

Specification

• Mesh Types (Gauge & Aperture): 10 Gauge × 2" × 2", 12 Gauge × 1" × 1", 10 Gauge × 1.25" × 2.5"
• Standard Panel Dimensions (H x W x D):
  • Height: 36", 42", 48", 54", 60", 66", 72", 78", 84", 90", 96", 102", 108", 114" or 120"
  • Width: 24", 30", 36", 48", 60", 96"
  • Depth: 12", 18", 24", 30", 36", 42", 48", 54", or 60"
• Structural Frame: Made from 14 Gauge angle iron (1.25" × 1.25" or 1.5" × 1.5")
• Hardware & Fasteners: Panels are connected using 1/4" × 3/4" bolts and nuts, and secured to floors/walls with 1/4" × 1-1/4" drive nails
• Finish: Wire mesh side panels, wire mesh roof panels, dividing shelves and doors shall have a powder-coated gray finish. Roof panels and back panels shall be galvanized

Customization Options

• Tier Options: Available as Single-Tier, Double-Tier, or Multi-Tier units to maximize vertical space.
• Back Panel: Only needed for back-to-back installations or when a single row is set away from a wall.
• Ceiling/Roof Panel: Not required, but recommended for situations where the ceiling height is over 102" high to prevent the secured area from being compromised.
• Front Extension Panels: Increase the width of your storage locker by easily adding front extension panels. Available in either 6", 12", 18", or 24" widths.
• Adjustable Shelves: For flexible space organization and increased storage capacity.

Wire Mesh Tenant Storage Lockers Features

• Fully Modular & Highly Flexible. Panels combine freely to create custom layouts, making them ideal for irregular or space-limited spaces.
• Superior Strength & Durability. Welded galvanized steel construction ensures long-term structural strength and corrosion resistance for both indoor and outdoor use.
• Maximum Visibility & Ventilation. Open mesh design allows clear visual inspection and promotes airflow, helping reduce moisture and odors—ideal for damp items or chemicals.
• Enhanced Security. Each locker door is fitted with a durable padlock hasp and hinge, allowing users to secure the locker with their own padlocks.
• Simple & Tool-Free Assembly. All components are pre-fabricated. Installation requires only basic tools (wrench, hammer) and can be completed quickly using bolts, nuts, and drive nails.

Applications:
