Custom Dense Welded Steel Grating Installed for a Garden Terrace in Singapore

For this project in Singapore, we supplied customized dense welded steel grating for a garden terrace in Lengkok Bahru. Designed with a clear mesh opening of 10 mm as specified by the client, the grating meets strict safety requirements for pedestrian areas, effectively preventing high heels from getting stuck and minimizing the risk of small objects falling through.

Dense welded steel grating features closely spaced bearing bars, offering enhanced safety, stability, and load-bearing performance. Manufactured from Q235 carbon steel, it provides excellent structural strength, durability, and corrosion resistance. With its neat appearance and easy installation, it is well suited for walkways, platforms, and other applications requiring both safety and practicality.

Specifications

• Product name: Dense welded steel grating
• Application: Garden Terrace, Lengkok Bahru
• Country: Singapore
• Material: Q235
• Surface treatment: Hot-dip galvanized
• Bearing bar: 30 × 3 × 2100 mm, spaced at 50 mm C/C (center to center)
• Cross bar: 10 ×2 × 1000 mm, clear spacing at 10 mm
• Panel size: 2100 × 1000 mm

Finished product photos and installation

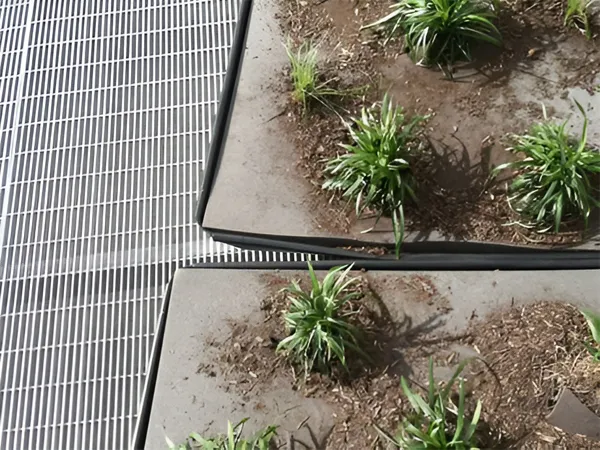

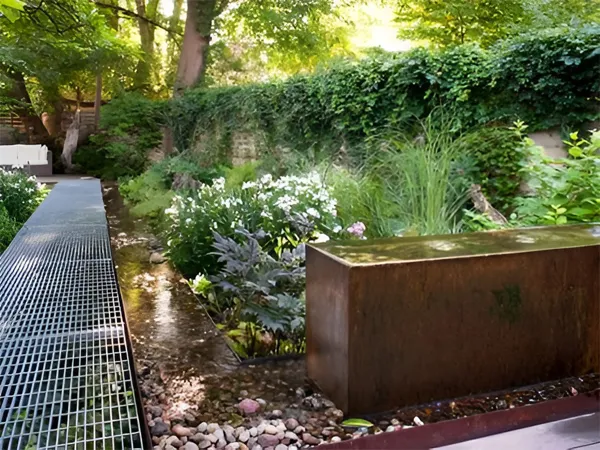

Dense welded steel grating for garden terrace

Dense welded steel grating details
