Hot-Dip Galvanized Chain Link Fence Project in Solomon Islands University

The client selected our chain link fence to enclose the perimeter of Solomon University.Based on the actual site conditions, we designed detailed specifications and drawings for the project and provided on-site installation guidance for the client’s reference.

The chain link fence is constructed from interwoven steel wires in a diamond pattern, providing both strength and visibility without obstructing the view beyond the fence.

Specifications

• Product name: Chain link fence system
• Application: University building fence
• Country: Solomon Islands.
• Chain link mesh:
  • Wire diameter: 3.15 mm
  • Mesh: 50 × 50 mm
  • Height: 2.1 m
  • Length: 15 m
  • Surface treatment: hot dipped galvanized.
• Posts:
  • Straining post/corner / end post: Ø60 × 3.0 mm × 2.8 m (Height).
  • Intermediate post: Ø48 × 3.0 mm × 2.8 (Height).
  • Rail post: Ø48 × 3.0 mm × 3.0 m (length).
• Accessories:
  • Barbed wire: 2.5 mm.
  • Tension wire: 3.15 mm.
  • L-type barbed wire support: 50 cm (length).
  • Bracing band, Wire tightener, Short Winder,Rail End,etc.

Finished product photos and installation

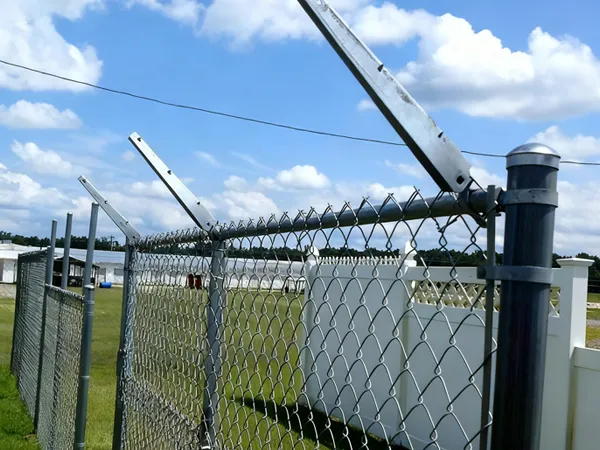

Overall installation result

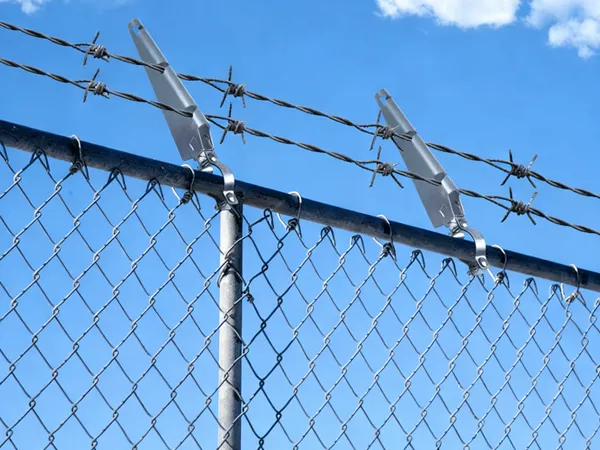

Installation details
